286 Bulbs: The Complete UK Buyer's Guide

286 bulbs, also commonly known as T5 bulbs, are small 12V wedge bulbs widely used for automotive dashboard, instrument panel, gauge, clock and switch illumination. Their compact size makes them particularly common in older cars, classic vehicles and instrument clusters where a small, direct-fit light source is required.

The traditional 286 bulb is generally associated with the T5 wedge format and is commonly referenced as W1.2W in automotive lighting. Modern LED replacements use the same compact wedge-style fitting but provide different colour and brightness options for instrument and dashboard lighting.

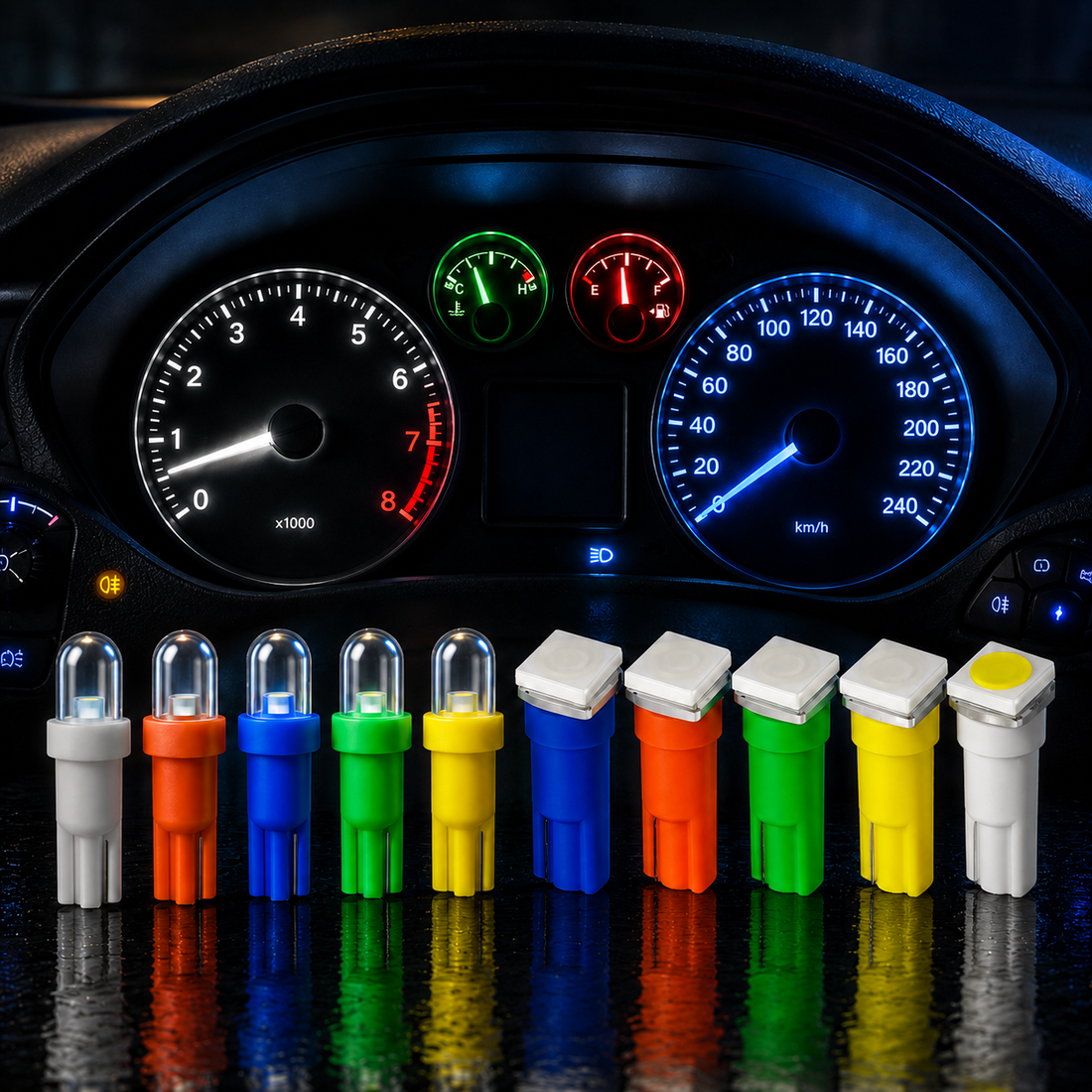

Argo Automotive Lighting offers 286/T5 bulbs in LED and SMD LED versions only, all designed for 12V automotive applications. Our colour range includes white, green, blue, amber/orange and red, making them ideal for restoring faded dashboard illumination or changing the appearance of compatible instrument clusters, gauges and switches.

This guide explains the difference between 286 bulbs, T5 bulbs, dashboard light bulbs, instrument cluster bulbs and instrument panel bulbs, how LED and SMD versions differ, where they are commonly used, what colours are available and what to check before ordering.

Quick Answer

A 286 bulb is a small 12V automotive wedge bulb commonly known as a T5 bulb. It is primarily used for dashboard and instrument lighting, including gauges, clocks, instrument clusters, warning panels, switches and other small interior illumination points.

The traditional 286 bulb is normally associated with the W1.2W type of automotive panel bulb. Argo supplies modern 12V LED and SMD LED alternatives in white, green, blue, amber/orange and red.

At a Glance

Feature	286 / T5 Bulbs
Main UK Reference	286
Common Name	T5 Bulb
Common Automotive Reference	W1.2W
Base Style	Small wedge / capless push-fit
Voltage	12V
Traditional Use	Dashboard and instrument illumination
Argo Technology	LED and SMD LED
Argo Colours	White, green, blue, amber/orange and red
CANBUS	Not part of the Argo T5/286 range
Main Applications	Dashboard, instrument panel, gauges, dials, clocks, switches and cluster illumination

Table of Contents

1. What Is a 286 Bulb?
2. Is a 286 Bulb the Same as a T5 Bulb?
3. What Does W1.2W Mean?
4. Where Are 286 / T5 Bulbs Used?
5. 286 Dashboard Light Bulbs
6. T5 Dash Light Bulbs
7. Instrument Cluster Bulbs
8. Instrument Panel Bulbs
9. Gauge and Dial Illumination
10. Clock and Switch Lighting
11. Classic Car Dashboard Bulbs
12. 286 LED Bulbs
13. T5 SMD LED Bulbs
14. LED vs SMD LED
15. LED vs Traditional Filament Bulbs
16. What About Xenon-Effect T5 Bulbs?
17. T5 / 286 Colours Explained
18. Polarity and LED Installation
19. Brightness and Beam Spread
20. 286 vs 73 and 74 Bulbs
21. How to Identify a T5 / 286 Bulb
22. How to Replace a Dashboard Bulb
23. Common Mistakes
24. Frequently Asked Questions
25. Conclusion

What Is a 286 Bulb?

A 286 bulb is a small automotive wedge bulb most commonly used for low-power interior illumination, especially inside dashboards and instrument clusters.

The bulb uses a compact capless wedge base. Instead of a metal bayonet cap, the electrical contacts run down the sides of the wedge and the bulb simply pushes into a compatible holder.

The fitting is much smaller than the familiar W5W/501/T10 wedge bulb, making it suitable for confined spaces behind gauges, switches and instrument panels.

Is a 286 Bulb a Headlight Bulb?

No. A 286/T5 bulb is not a headlight bulb. It is an interior and instrument-panel bulb designed for low-power illumination.

💡 Argo Expert Tip

Do not confuse automotive T5 bulbs with T5 fluorescent tube lights used in homes, offices and commercial lighting. In automotive use, T5 normally refers to the small 286-style wedge bulb used in dashboards and instruments.

Is a 286 Bulb the Same as a T5 Bulb?

In automotive lighting, 286 and T5 are commonly used together for the same small wedge-bulb family.

That is why products may be described as:

• 286 bulbs
• 286 LED bulbs
• T5 bulbs
• T5 LED bulbs
• T5 wedge bulbs
• T5 dash bulbs
• T5 dashboard bulbs
• T5 instrument panel bulbs

For this guide, 286 is the clearest automotive lead term because “T5 bulb” can also refer to fluorescent tube lighting outside the automotive market.

Why Does T5 Cause Search Confusion?

The term T5 is used in more than one lighting industry. Automotive T5 bulbs are tiny wedge bulbs used in dashboards, while household/commercial T5 lighting usually refers to fluorescent or LED tube lamps.

💡 Argo Expert Tip

If you are searching for a car dashboard bulb, include terms such as 286, automotive, dashboard, dash, instrument cluster or wedge rather than searching for T5 alone.

What Does W1.2W Mean?

W1.2W is a common traditional automotive reference associated with small 12V panel and instrument bulbs in this size range.

The reference indicates a small wedge-type bulb traditionally designed for approximately 1.2W operation in compatible 12V circuits.

Modern LED replacements consume much less power than a traditional filament bulb, so their actual wattage is not directly comparable with the original filament specification.

Where Are 286 / T5 Bulbs Used?

286/T5 bulbs are primarily used inside the vehicle rather than for major exterior lighting.

Common compatible applications include:

• Dashboard light bulbs
• Dash light bulbs
• Instrument cluster bulbs
• Instrument panel bulbs
• Gauge illumination
• Speedometer illumination
• Rev-counter illumination
• Fuel gauge lighting
• Temperature gauge lighting
• Clock illumination
• Heater-control illumination
• Switch illumination
• Centre-console illumination
• Warning-symbol illumination where the holder uses this fitting
• Classic-car instrument lighting

Are 286 Bulbs Mainly Interior Bulbs?

Yes. The overwhelming majority of 286/T5 applications are interior dashboard, instrument or switch-lighting positions.

286 Dashboard Light Bulbs

Dashboard light bulbs, dash light bulbs and dashboard bulbs are the most important application group for the 286/T5 fitting.

Behind an instrument panel, several small bulbs may be used to illuminate different sections of the cluster. These bulbs can dim with age, fail completely or develop uneven colour over time.

Why Upgrade Dashboard Bulbs to LED?

• Brighter or cleaner illumination
• Choice of colours
• Lower power consumption
• Long service life
• Modern appearance
• Improved visibility of gauges

💡 Argo Expert Tip

If one dashboard bulb has failed and several identical bulbs illuminate the same cluster, consider replacing the full matching group. Mixing old filament bulbs and new LEDs can create uneven colour and brightness.

T5 Dash Light Bulbs

T5 dash light bulbs are simply another way of describing compact T5/286 bulbs used behind dashboard components.

They may be fitted directly into small wedge holders or into removable twist-lock holders depending on the vehicle.

Does the T5 Bulb Always Come With a Holder?

No. Some vehicles use a bare T5 wedge bulb inserted into a reusable plastic holder, while others use bulb-and-holder assemblies. Check the original component before ordering.

Instrument Cluster Bulbs

Instrument cluster bulbs illuminate the main group of gauges directly in front of the driver.

The cluster may include:

• Speedometer
• Rev counter
• Fuel gauge
• Coolant temperature gauge
• Odometer area
• Warning-symbol sections

LED Instrument Cluster Bulbs

LED replacements can give instrument clusters a sharper and more modern appearance, particularly in older vehicles where the original lighting has become dim.

Instrument Cluster Light Bulbs

When searching for replacements, terms such as instrument cluster light bulbs, instrument cluster bulbs, T5 dash bulbs and 286 LED bulbs all commonly lead to this product family.

Instrument Panel Bulbs

Instrument panel bulbs is a broader term that can cover cluster lighting, centre-console gauges, heater panels, clocks and illuminated switches.

The 286/T5 fitting is especially useful where manufacturers require a compact bulb in a shallow space.

💡 Argo Expert Tip

Do not assume every bulb behind an instrument panel is T5. Some clusters use several different bulb sizes and holders in the same panel.

Gauge and Dial Illumination

Small 286/T5 bulbs are frequently used behind analogue gauges and dials.

Compatible applications can include:

• Speedometer dial
• Rev counter
• Fuel gauge
• Oil-pressure gauge
• Temperature gauge
• Voltmeter
• Auxiliary gauges

Why Can LED Colour Look Different Through a Gauge?

Many instrument clusters use coloured filters, printed dial faces or coloured plastics. The final colour seen by the driver is therefore a combination of the LED colour and the materials inside the cluster.

💡 Argo Expert Tip

A blue LED behind a green-tinted instrument filter may not produce a clean blue result. If you want a specific finished colour, the original cluster filters matter just as much as the bulb colour.

Clock and Switch Lighting

286/T5 bulbs are also commonly used for small illuminated controls and displays.

Possible applications include:

• Dashboard clocks
• Heater controls
• Ventilation controls
• Centre-console switches
• Accessory switches
• Small illuminated control panels

Switch Illumination

Older vehicles often use replaceable miniature bulbs in switches, whereas many newer vehicles use permanently fitted LEDs. Check whether the bulb can actually be removed before ordering.

Classic Car Dashboard Bulbs

286/T5 bulbs are particularly popular with classic-car owners because older vehicles often use replaceable miniature bulbs throughout their dashboards and gauges.

LED upgrades can be used to refresh faded instrument lighting while retaining the original instrument panel and bulb holders.

Why Are T5 LEDs Popular in Classic Cars?

• Older instrument lighting can become very dim
• LED colours can transform the appearance of a classic dashboard
• Lower electrical consumption can be useful in older electrical systems
• LED bulbs generate less heat than traditional filament bulbs

Classic Vehicle Warning

Classic vehicles can have modified wiring, replacement instrument clusters or non-original bulb holders. Always inspect the actual bulb rather than relying only on the vehicle model.

286 LED Bulbs

286 LED bulbs replace the traditional filament with light-emitting diodes while retaining the compact wedge-style fitting.

Argo offers 286/T5 bulbs in LED formats specifically for 12V automotive interior and dashboard applications.

Benefits of 286 LED Bulbs

• Lower power consumption
• Instant illumination
• Wide colour choice
• Long operating life
• Low heat output
• Modern dashboard appearance

T5 SMD LED Bulbs

Argo also offers T5 SMD LED bulbs.

SMD stands for Surface-Mounted Device. Instead of using a larger traditional-style LED component, the light-emitting chip is mounted directly onto a compact circuit board.

What Is the Advantage of SMD?

SMD technology allows a small bulb to produce a strong, controlled light output while remaining compact enough for dashboard and instrument applications.

LED vs SMD LED

Both are LED technologies, but the physical construction is different.

Feature	Standard LED	SMD LED
Technology	Conventional LED component	Surface-mounted LED chip
Size	Compact	Very compact
Typical Use	Dashboard and instrument lighting	Dashboard and instrument lighting
Colour Options	Multiple	Multiple
12V Automotive Use	Yes	Yes

Which Is Better?

There is no universal “best” choice. The correct option depends on the required brightness, available space, beam spread and the appearance you want from the instrument cluster.

LED vs Traditional Filament Bulbs

Traditional 286/W1.2W bulbs use a heated filament, while modern LED versions use semiconductor light sources.

Traditional Filament Bulbs

• Warm original-style light
• Omnidirectional output
• Higher power consumption
• Shorter typical service life
• No polarity issue

LED Bulbs

• Lower power consumption
• Wide colour choice
• Long service life
• Lower heat output
• May be polarity-sensitive

Argo's current T5/286 range is LED and SMD LED only. We do not present filament, halogen or xenon versions as part of the current Argo range.

What About Xenon-Effect T5 Bulbs?

Some aftermarket sellers use terms such as xenon white or xenon-effect for small wedge bulbs designed to look whiter than standard filament bulbs.

This should not be confused with a true HID xenon lighting system. A T5/286 dashboard bulb is not an HID xenon lamp.

Argo's current 286/T5 range is focused on LED and SMD LED technology.

T5 / 286 Colours Explained

Argo supplies 286/T5 bulbs in white, green, blue, amber/orange and red.

White T5 LED Bulbs

White provides a clean, modern appearance and can improve the visibility of compatible gauges and instrument markings.

Green T5 LED Bulbs

Green is a popular traditional dashboard colour and can work particularly well in older instrument panels.

Blue T5 LED Bulbs

Blue provides a modern custom appearance for compatible dashboards, switches and gauges.

Amber / Orange T5 LED Bulbs

Amber/orange produces a warm instrument colour and is popular for classic-style dashboards and certain warning or gauge applications.

Red T5 LED Bulbs

Red is frequently used for performance-style instrument lighting, warning areas and custom dashboard themes.

💡 Argo Expert Tip

The colour of the bulb is not always the final colour you see. Instrument faces, coloured filters and diffusers can significantly alter the finished result.

Polarity and LED Installation

Traditional filament bulbs work regardless of which way current flows through them. Many small LEDs are different and can be polarity-sensitive.

What If My T5 LED Does Not Work?

If a newly installed T5 LED does not illuminate:

1. Switch off the ignition and lighting circuit.
2. Remove the bulb.
3. Rotate the bulb 180 degrees.
4. Refit it.
5. Test again.

If it still does not work, check the holder, contacts, circuit and bulb specification.

💡 Argo Expert Tip

Test every dashboard LED before fully refitting the instrument cluster. Reversing one polarity-sensitive bulb is much easier before the dashboard has been reassembled.

Brightness and Beam Spread

Dashboard bulbs are different from exterior bulbs because more brightness is not always better.

Instrument panels often rely on controlled light distribution through plastic diffusers and printed dial faces.

Can an LED Be Too Bright?

Yes. An excessively bright LED can create hot spots, glare or uneven illumination behind a gauge.

What Is Beam Spread?

Beam spread describes how evenly the bulb distributes light around the cluster. Some bulb designs produce a more directional output, while others spread light more widely.

💡 Argo Expert Tip

For instrument clusters, even illumination is often more important than maximum brightness.

286 vs 73 and 74 Bulbs

References such as 73 bulbs and 74 bulbs are also encountered when searching for small automotive wedge and instrument bulbs.

They belong to the broader miniature automotive instrument-bulb category and can appear in aftermarket cross-reference listings, but they should not automatically be treated as electrically identical to every 286/W1.2W bulb.

Physical dimensions, wattage and original specification should always be checked before substituting one reference for another.

Why We Do Not List Every Possible Cross-Reference

There are many historical and international miniature bulb numbers. Listing every number as though it were an exact equivalent can create more confusion than it solves.

For UK automotive use, 286, T5 and W1.2W are the clearest references for this guide.

How to Identify a T5 / 286 Bulb

Look for the following features:

• Very small wedge-style base
• No metal bayonet cap
• Push-fit design
• Much smaller than a W5W/501/T10 bulb
• Used behind dashboard, cluster or instrument components
• Markings or vehicle documentation referring to 286, T5 or W1.2W

Compare Size Before Ordering

Miniature wedge bulbs come in several sizes. A larger wedge bulb may look similar in photographs but will not fit a T5 holder correctly.

How to Replace a Dashboard Bulb

Replacing a 286/T5 bulb can be simple once the instrument panel is accessible, but dashboard removal varies significantly by vehicle.

1. Switch Off the Vehicle

Turn off the ignition and relevant lighting circuits.

2. Access the Instrument Cluster or Panel

Follow the vehicle manufacturer's procedure. Some dashboards require trim panels, screws or clips to be removed.

3. Locate the Bulb Holder

Some 286 bulbs push directly into the holder, while others sit inside small twist-lock plastic carriers.

4. Remove the Old Bulb

Pull the wedge bulb carefully from the holder.

5. Fit the LED

Insert the new 12V T5/286 LED securely.

6. Test Before Reassembly

Switch the lighting on and check every replaced bulb.

7. Reverse Polarity If Required

If one LED does not illuminate, switch everything off and rotate the bulb 180 degrees.

Common Mistakes When Buying 286 Bulbs

Searching for T5 Without “Automotive”

T5 is also used for fluorescent tube lights. Search terms such as 286 bulb, T5 dashboard bulb or T5 automotive LED are more specific.

Confusing T5 with W5W / T10

T5/286 bulbs are much smaller than W5W/501/T10 bulbs.

Assuming Every Small Wedge Bulb Is 286

Instrument panels can contain several miniature bulb sizes.

Assuming All Cross-Reference Numbers Are Identical

Historical numbers such as 73 and 74 can appear in related listings, but wattage and specifications should be checked.

Expecting CANBUS

Argo's T5/286 range is not a CANBUS range. These bulbs are predominantly used in simple interior and instrument-lighting circuits.

Buying 24V by Mistake

Argo's T5/286 range is designed for 12V applications.

Ignoring Polarity

Some LEDs will not light until rotated 180 degrees.

Choosing Colour Without Considering Cluster Filters

Existing coloured plastics can change the final appearance.

💡 Argo Expert Tip

Before ordering, check five things: T5/286 fitting, 12V specification, available space, required colour and whether the instrument cluster uses removable bulbs.

Frequently Asked Questions

What is a 286 bulb?

A 286 is a small automotive wedge bulb commonly used for dashboard, instrument-panel and gauge lighting.

Is a 286 bulb the same as a T5 bulb?

In automotive lighting, 286 and T5 are commonly used together for this small wedge-bulb family.

What is a T5 automotive bulb used for?

T5 automotive bulbs are primarily used for dashboards, instrument clusters, gauges, clocks, switches and other small interior illumination points.

Is a T5 car bulb the same as a T5 fluorescent tube?

No. Automotive T5 bulbs are tiny wedge bulbs. T5 fluorescent tubes are completely different household/commercial lighting products.

What does W1.2W mean?

W1.2W is a common traditional reference associated with small 12V automotive panel and instrument bulbs.

Are 286 bulbs 12V?

The Argo 286/T5 range is designed for 12V automotive applications.

Does Argo sell 24V T5 bulbs?

No. The Argo T5/286 range covered by this guide is 12V only.

Does Argo sell CANBUS T5 bulbs?

No. The Argo T5/286 range is not a CANBUS range.

Does Argo sell halogen T5 bulbs?

No. Argo's current T5/286 range is LED and SMD LED only.

Does Argo sell xenon T5 bulbs?

No. Argo's current T5/286 range is LED and SMD LED only.

What colours are T5 LED bulbs available in?

Argo offers white, green, blue, amber/orange and red T5/286 LEDs.

Can 286 bulbs be used in dashboard lights?

Yes. Dashboard illumination is one of the main applications for the 286/T5 fitting.

Can T5 bulbs be used in instrument clusters?

Yes, where the cluster uses a T5/286 wedge bulb.

Can T5 bulbs illuminate gauges?

Yes. They are commonly used behind compatible speedometers, rev counters, fuel gauges, temperature gauges and auxiliary instruments.

Are T5 bulbs used in clocks?

Yes. Selected automotive clocks and small displays use T5/286 bulbs.

Can T5 bulbs be used for heater controls?

Yes, on vehicles whose heater-control panel uses this miniature wedge fitting.

Are T5 LED bulbs polarity-sensitive?

Some are. If the bulb does not illuminate, switch the circuit off, remove the bulb, rotate it 180 degrees and refit it.

Why is my new T5 LED too bright?

Instrument clusters rely on diffusers and filters. A very bright or directional LED can create hot spots in some dashboards.

Why does my T5 LED look a different colour through the dashboard?

Coloured filters and printed dial materials inside the cluster can alter the final colour seen by the driver.

Are 73 bulbs the same as 286 bulbs?

73 is a related miniature instrument-bulb reference found in some aftermarket listings, but original specifications should be checked before treating it as a direct equivalent.

Are 74 bulbs the same as 286 bulbs?

74 is also a related miniature wedge/instrument reference, but physical and electrical specifications should be confirmed before substitution.

Can T5 bulbs be used in classic cars?

Yes. T5/286 bulbs are especially common in older and classic vehicles with replaceable dashboard and gauge bulbs.

Can I change my dashboard colour with T5 LEDs?

Yes, where the cluster uses replaceable T5/286 bulbs, although existing dashboard filters can affect the finished colour.

Is a 286 bulb the same as a 501 bulb?

No. A 286/T5 is considerably smaller than a 501/W5W/T10 bulb.

Is a T5 bulb a headlight bulb?

No. Automotive T5/286 bulbs are low-power dashboard and instrument bulbs, not main headlight bulbs.

Conclusion

286 bulbs, commonly known as T5 bulbs, are small 12V automotive wedge bulbs designed primarily for dashboard, instrument-cluster and interior control illumination.

They are widely used for dashboard light bulbs, dash light bulbs, instrument cluster bulbs, instrument panel bulbs, gauges, dials, clocks, heater controls and switches, particularly in older vehicles and classic cars.

Argo Automotive Lighting supplies 286/T5 bulbs in LED and SMD LED technology, with white, green, blue, amber/orange and red colour options. Our range is designed for 12V applications and does not rely on CANBUS technology.

Because the term T5 is also widely used for fluorescent tube lighting, automotive buyers should concentrate on the 286, T5 automotive, dashboard, instrument cluster and W1.2W references when identifying the correct bulb.

Explore Argo Automotive Lighting's range of 286 and T5 LED bulbs for compatible dashboard and instrument applications.

Free UK delivery on every order.
